GENERAL INFORMATION
- Adress: C. Verdaguer i Callís 12, 08003 Barcelona
- Telephone: +34 93 315 23 54
- E-mail adresses:
anticteatre@anticteatre.com / Production
comunicacio@anticteatre.com / Communication
gestio@lanticteatre.com / Management-administration
tecnic@anticteatre.com / Technical coordination

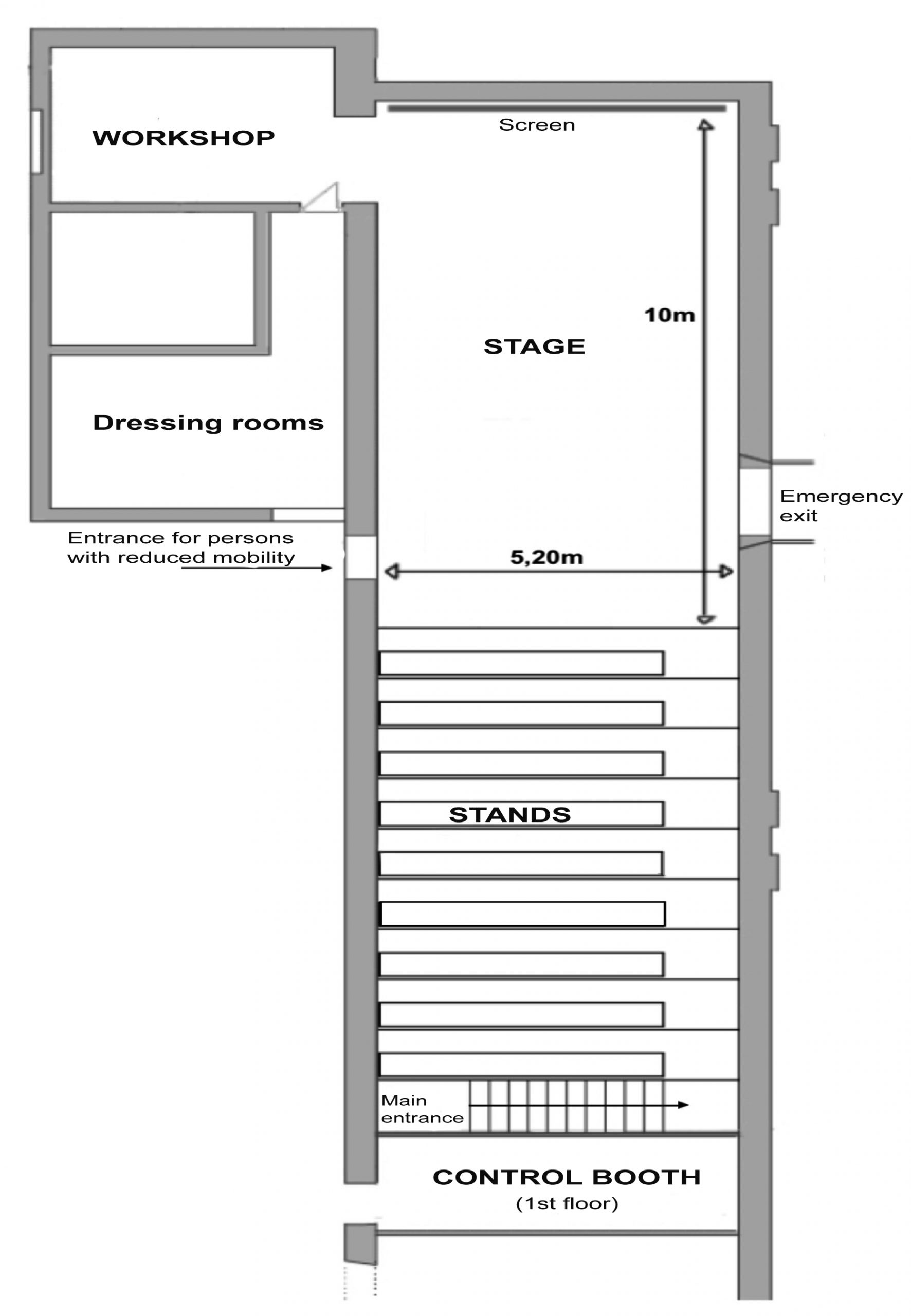

AUDITORIUM
- Stage dimensions: 10m long x 5.20m wide
- Stage to ceiling height: 4,20m
- Floor type: Wooden flooring. Reversible black/white linoleum
- Entrances: 3 entrances. Main entrance, emergency exit entrance and entrance for people with reduced mobility
- Seating: 9 rows of benches. Occasionally in January these can be taken down, leaving the entire area open
- Capacity: 70 persons
- Ceiling structures: Grid consisting of 9 moveable bars for hanging lights, speakers, set pieces etc. 1 reinforced beam for hanging ropes, trapezes, swings, etc. (maximum load: 200kg). Sprinkler system for fire prevention (do not touch or hang things off this)
- Fire prevention system: Sprinklers on the ceiling. 1 fire extinguisher to stage side and evacuation markings.
- Control booth: On the first floor, not connected to stage
- Parking: No
- Loading/unloading: Entrance at C/ Verdaguer i Callis (see map)
- Entrance types: Main entrance: staircase consisting of 16 steps. Emergency exit/ entrance: lift measuring 0.95m x 1.45m x 2m high, maximum load 600kg; or staircase
- Dressing rooms: capacity for 6 persons (with toilet)
- Showers: 2 showers (with hot water)
- WIFI: yes
Instructions for loading /unloading:
- Entrance is via carrer Amadeu Vives which has automated bollards, therefore please note that access times are limited to: Monday to Friday, 9.15am to 11am and 3pm to 4.45pm.
- Verdaguer i Callis street is narrow, so if your transport vehicle is wide you will have to park in the loading zone on Carrer St Pere més alt.
- If the loading/unloading time takes longer than 30 minutes, a special permit is required. Antic Teatre will request this permit together with the companies and will defray the costs of the permit so long as it is requested in good time.
- Antic Teatre is not responsible for any fines emitted by the local police to any of the company’s vehicles.
SOUND
· Behringer X32 Compact sound desk
· XLR box at back of stage with 14 outputs + 4 inputs
· Fixed P.A. x 4 Turbosound M10’’
· Mobile P.A. x 4 Turbosound M12’’
· SUB Turbosound M18B
MICS:
· x 2 Shure SM58
· x 6 Audio-Technica ATM510
· x 4 Audio-Technica MB 5K
· x 4 Audio-Technica MB 4K
· x 4 DI Samson S direct plus (x3 mono, x1 stereo)
WIRELESS MICS:
· x 2 hand-held mics (SHURE SM58)
· x 1 headband mic
· M Audio M track duo interface
SOUND LIMIT: 80 dbA
Sound limiter receiver installed 3m from the PA
LIGHTING
· PICCOLO S24 1000 lighting console with keyboard, monitor and mouse.
· 18 Channel Dimmer 2KW (one is used for audience lighting), 33 circuits distributed around the room.
· x10 PC 1000W Spotlights (8 visors)
· x10 PC 500W Spotlights (8 visors)
· x4 Fresnel 500W Spotlights
· x4 500W Z 20°-40° cutouts (2 irises)
· x8 PAR 64 Spotlights
· x2 PAR 32 Spotlights
· x1 Symmetric Panorama spotlight 1000W
· x1 Asymmetric Panorama spotlight 1000W
· x2 Symmetric Panorama spotlights 300W
· x6 LED Eurolite 4C-12 Silent Slim Spot Spotlights
· x1 LED AFX 424 bars
· x4 tripods. (can be used for sound or lighting)
· x6 plinths
PROJECTION
· White projection screen 5m x 4,20 – Mechanical, installed at the back of the stage (covers the entire wall).
· Fixed projector: PANASONIC PT-EZ570E, Full HD, 5000 Lumens
· EPSON EB-l635SU Laser projector, 6000 Lumens
· 2 x DLP Optoma EP780 projectors, 4000 Lumens
Technical booth on the upper floor (click to enlarge photo)
SOUND BOOTH
· Dimensions 4,20m x 1,75m ( 3-person capacity)
· Dimmers and patch room
· Mac Mini i5 8GB RAM computer with QLab4
· Sound limiter with Dbs measuring screen (max 80)
· A/C control
· Audience lighting control
OTHER MATERIALS
· Eurolite Dynamic Faze 1000 smoke machine
· White/black linoleum (reversible)
· Weights (sandbags approx. 1 kg)
· 8 microphone stands with boom arms
· x1 Music rack
· Black sheets
FOR ASSEMBLY:
· 1 aluminium scaffolding
· 1 three-section extendable aluminium ladder
· 1 folding telescopic aluminium ladder
